FIA Rain Lights and LED Rear Lamps AX02
Ultra-bright motorsport rear lights for GTE/GT3, LMP, Super GT, DTM, Rally, offshore powerboats, Le Mans Hypercars, Daytona Prototypes etc.
- dimensions: 200 x 30 x 19 mm, weight 98g
- type F: FIA homologated rain light
- type X: FIA homologated rain light with blink function
- type D: dual stage lamp: brake light / rain light and tail light
- type RC: combined lamp blinker (yellow), brake light (red), tail light (red)
- manufacturer: Aamgard Engineering
Common for all AX02 lamps is the slender design, the low weight and the very heigh brightness. With 1100cd the initial light intensity of the red rain lights is considerably higher than required by the new FIA standard. Apart of the FIA homologation, the variants -F and -X are also available with LED colours yellow, blue, white or green.
Resp. variants and functions the AX02 lamps do correspond with LED lamps of the AX03 series. The AX02 lamps are used by several works teams as a dust and brake light at the Rally Dakar.
FIA Rain Lights and LED Rear Lamps AX03
Ultra-bright rear lamps and rain lights for formula cars, Hypercars, GTs, Le Mans and Daytona sports prototypes, rally cars, sport boats etc.
- dimensions: 105 x 65 x 19 mm, weight 98g
- type F: FIA homologated rain light
- type X: FIA homologated rain light with blink function
- type D: dual stage lamp: brake light / rain light and tail light
- type RC: combined lamp blinker (yellow), brake light (red), tail light (red)
- manufacturer: Aamgard Engineering
The AX03 lamps correspond to the AX02 types, but do have a more compact size. The variants F, X and D are also available with LED colours yellow, blue, white or green as custom-made products. With 1100cd the initial light intensity of the Aamgard motorsport rain lights is considerably higher than required by the new FIA standard.
Amongst others, rear lamps of the AX03 series are used in historic F1 cars, as OEM part of the Ferrari FXX-K hybrid super sports car and by several Rally Cross car builders.

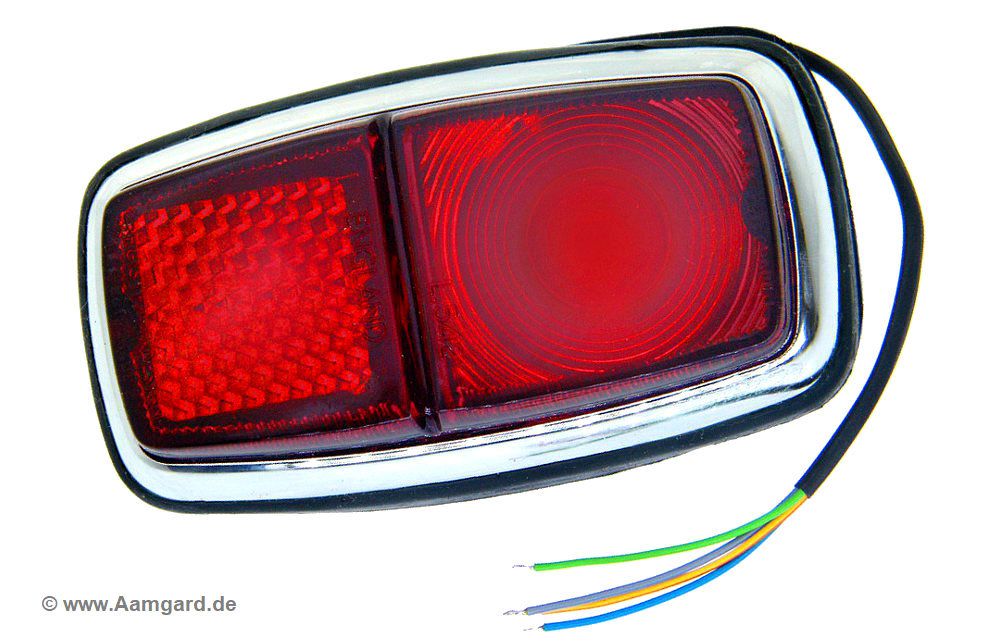

Lucas 542 Replica with LEDs / Cobra Rear Lamp PL04
Motorsport replica of the classic Lucas 542 tail light, retrofit with modern LED technology. For Cobra, Super-7, Jensen et al. The lamp contains separate brake light, indicator and tail light functions. The indicator light optionally could be either red (US standard / clubsport) or yellow-amber (European road standard).
- PL04-R: red blinker LED
- PL04-Y: yellow blinker LED
- housing / IP class: replica Lucas 542 / IP65
- dimensions: 130 x 75 x 25 mm
- weight: ca. 140 g
- manufacturer: Aamgard Engineering
The PL04 lamps do have an British BS lense stamp, but do not have a formal public road approval. But to all experience they are very appreciated for classic cars by the local authorities in all European countries, in Canada, the USA, New Zealand, Australia and South Africa.

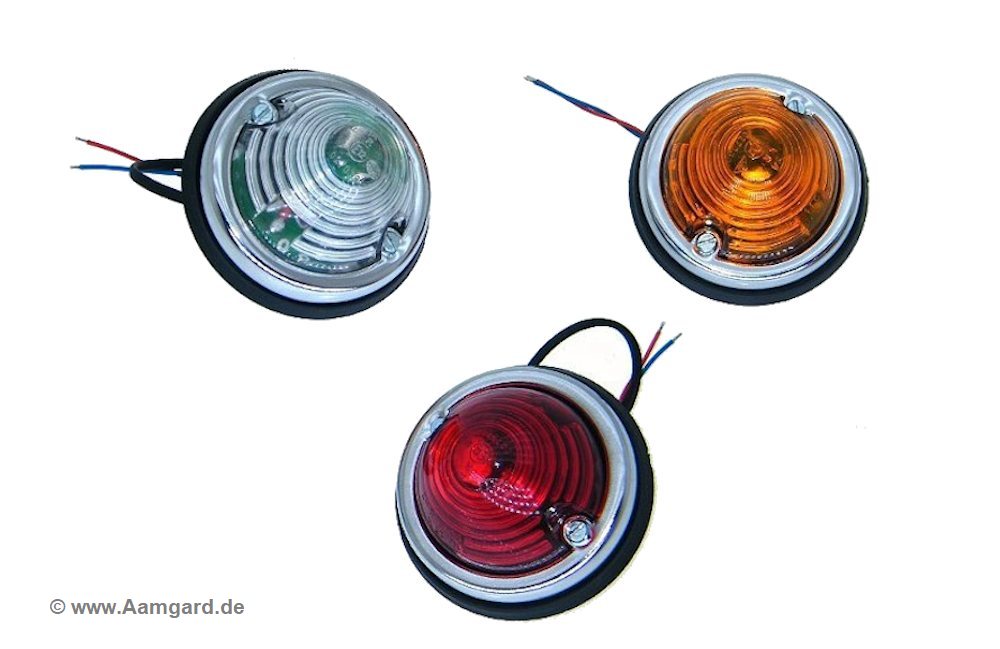

Classic Round Lamp with LEDs PL05
The PL05 lamps are used at many Lotus Super-7 replicas and kit-cars, Caterham, Cobra, Austin et al., as well as a rainlight of classic Formula 3, Formula Junior, Formula V, Formula Ford etc. Typical applications are blinker, brake lights and taillights or reverse lights. In historic motorsports, especially the blue and green versions are used for vehicle identification at night races.
- lense colours: red, yellow, frosted-transparent / opal
- light colours: red and yellow, with opal lense also white, blue, green
- high / low power variants for brake light, blinker, taillight etc.
- housing / IP class: ECE-E12 / IP65
- main dimension: Ø 70 mm
- weight: ca. 70 g
- manufacturer: Aamgard Engineering
The lenses do have an ECE number. Due to the LED retrofit the use on public roads should be agreed with the local road car authorities.

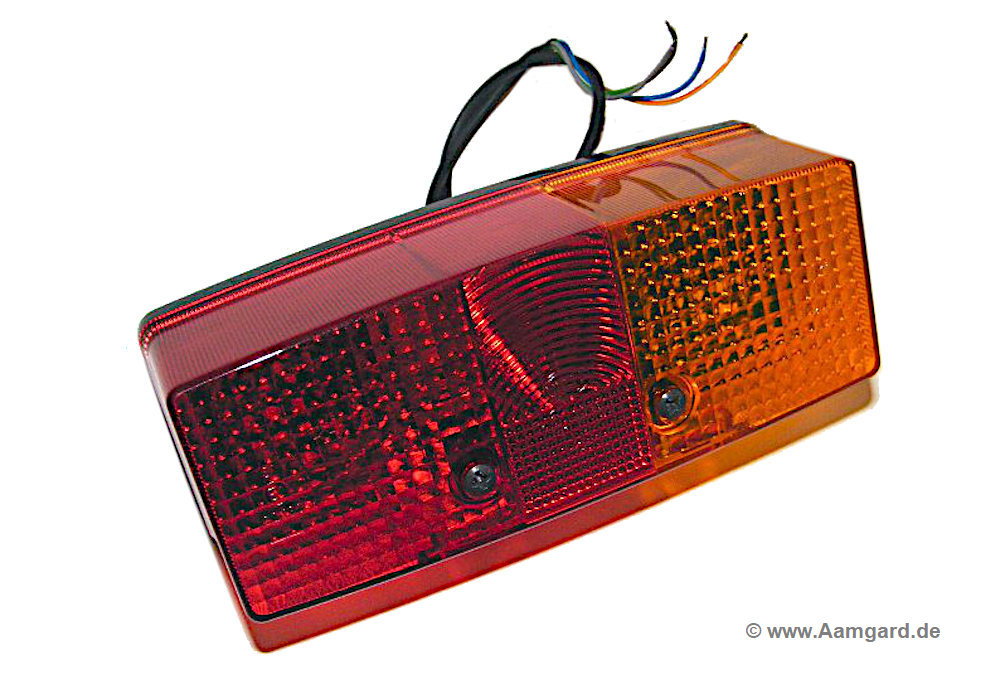

Tractor and Sports Car Rear Lamp with LEDs PL06
This lamp can be found at older tractors, caravans, car trailers etc. Since it is simple to mount and very cost efficient, this 'tractor rear lamp' also has been used in many Le Mans sports prototypes of the 70th and 80th, like some Sauber, Tiga, Chevron and others. It has three single fields for red tail light, yellow indicator and brake light.
- power saving and extra bright LED technology
- housing / IP class: ECE-E12 / IP65
- dimensions: ca. 160 x 60 x 50 mm
- weight: ca. 170 g
- manufacturer: Aamgard Engineering
The housing of the PL06 do have an ECE number. Due to the LED retrofit the use with tractors, trailers etc. on public roads should be agreed with the local authorities.

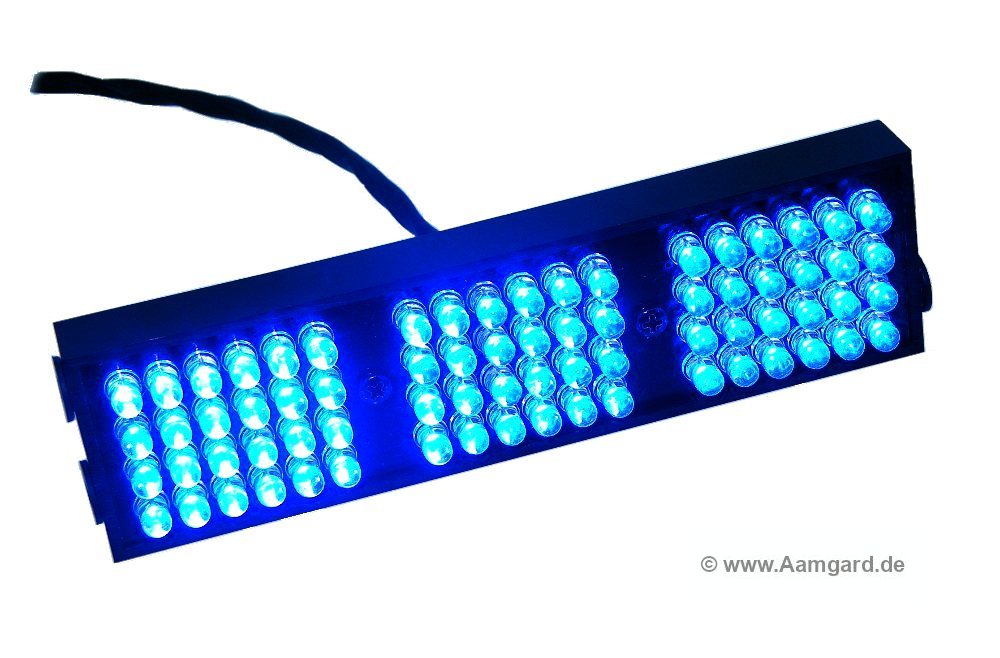

Multi-Function LED Lamp / FIA Rain Light AX04
Signal lamp used as track safety device, for pit lane exit signals, as indicating light / flash light in safety cars, as brake, fog or rain light in racecars etc. or for industrial semaphores. The three single fields can be equipped with different coloured LEDs and operated independently.
- supply voltage: 10..18 V (reverse and over voltage proof up to 42 V)
- main dimensions: 144/148 x 39 x 21 mm, weight (dep. by type) ca. 92 g
- monochromatic: LED colours red, yellow, blue, green and white
- multi colour: e.g. red-yellow-green (semaphore),
blue-yellow-green (safety cars) etc. - manufacturer: Aamgard Engineering
The variant with all-red LEDs originally has been developed for Lola Formula 3 racecars and possesses an FIA rain light homologation for motorsports.
