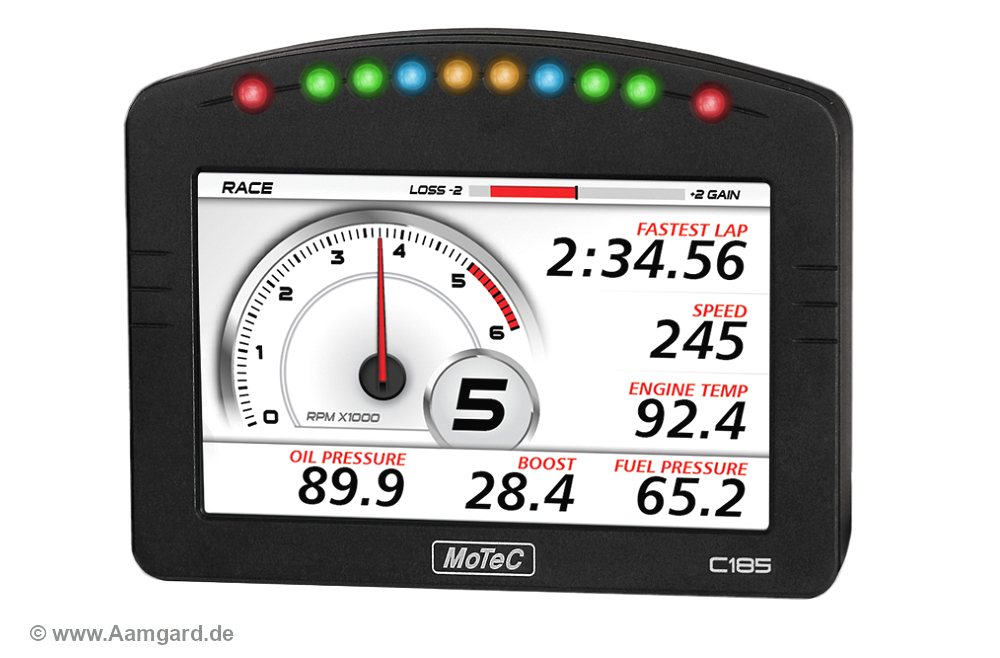

Motec Dashlogger 5" C185
The Motec C185 dashlogger combines a high-resolution 5-inch colour display with a professional motorsport data logger. The logger is compatible to the free Motec i2 data analysis software and to the i2-Pro software. The display is widely configurable regarding displayed information, display pages, layout and colour scheme.
- high-resolution colour display 5" / 125mm
- 10 configurable RGB LEDs for engine revs display, warning lamps etc.
- 14/28 analog inputs, 10 digital inputs
- 6 configurable PWM outputs
- Ethernet, 4x CAN and 2x RS232 data interface
- 3 camera inputs for live video integration
- int. memory 250/500MB, optional ext. USB flash drive
- channel sample rate up to 1kS/s
- expandable with SVIM, E816 and E888 DAQ modules
- manufacturer: Motec

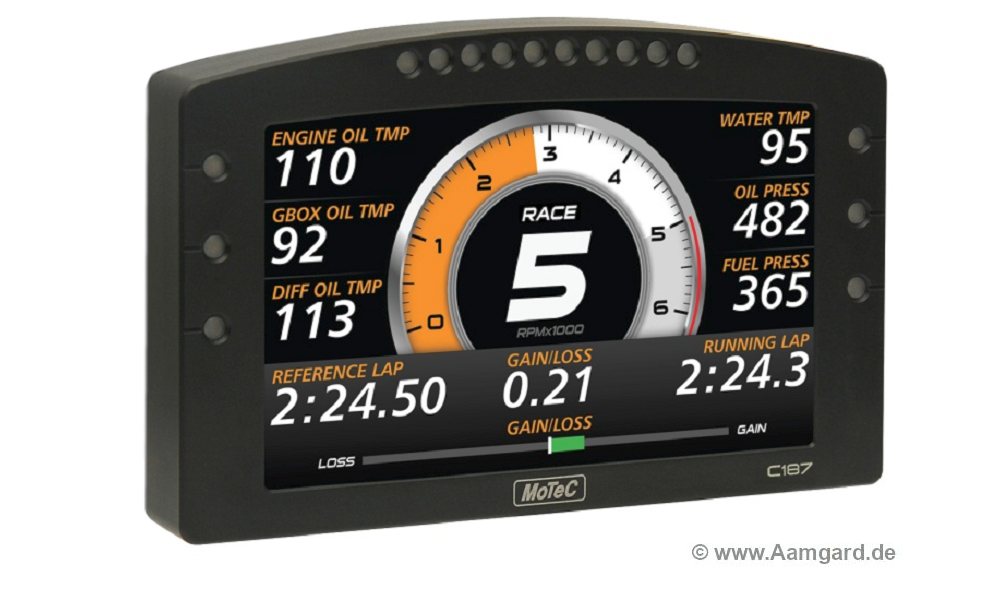

Motec Dashlogger 7" C187
The dashlogger C187 from Motec is by functionality, logging capacity etc. mainly equal to the C185, but has a bigger display. As the latter one, it is compatible to the free Motec i2 data analysis software and to the i2-Pro software. The C185 also is user-configurable regarding page setup, displayed information, layout and colour scheme.
- high-resolution colour display 7" / 175mm
- 16 programmable RGB LEDs for engine revs display, warning lamps etc.
- 14/28 analog inputs, 10 digital inputs
- 6 configurable PWM outputs
- Ethernet, 4x CAN and 2x RS232 data interface
- 3 camera inputs for live video integration
- int. memory 250/500MB, optional ext. USB flash drive
- channel sample rate up to 1kS/s
- expandable with SVIM, E816 and E888 DAQ modules
- manufacturer: Motec

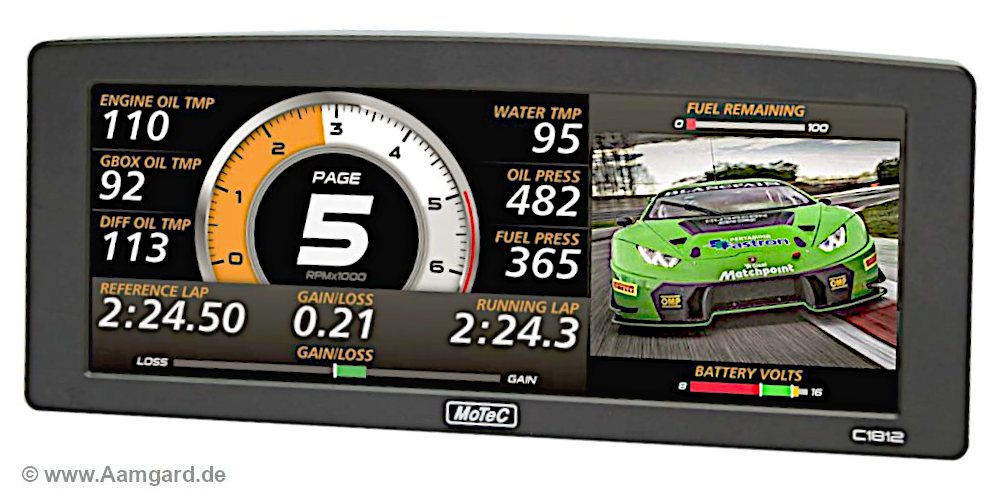

Motec Dashlogger 12" C1812
As the C185 and the C187 the Motec C1812 combines a professional motorsport data logger and a high-resolution TFT colour display. But the C1812 has an outstanding wide 12 inch display, which gives manifold possibilities to show data and driver information. Having three video input channels e.g. live mirror camera and night vision device pictures can be overlayed and displayed on the C1812 driver screen. Configurability and logging functions meet all the capabilities of the Motec C18 dashlogger series.
- high-resolution colour display 12" / 300mm
- 3 camera inputs for live video integration
- 14/28 analog inputs, 10 digital inputs
- 6 configurable PWM outputs
- int. memory 250/500MB, optional ext. USB flash drive
- channel sample rate up to 1kS/s
- Ethernet, 4x CAN and 2x RS232 data interface
- compatible with shift light module SLM and all other Motec modules
- manufacturer: Motec

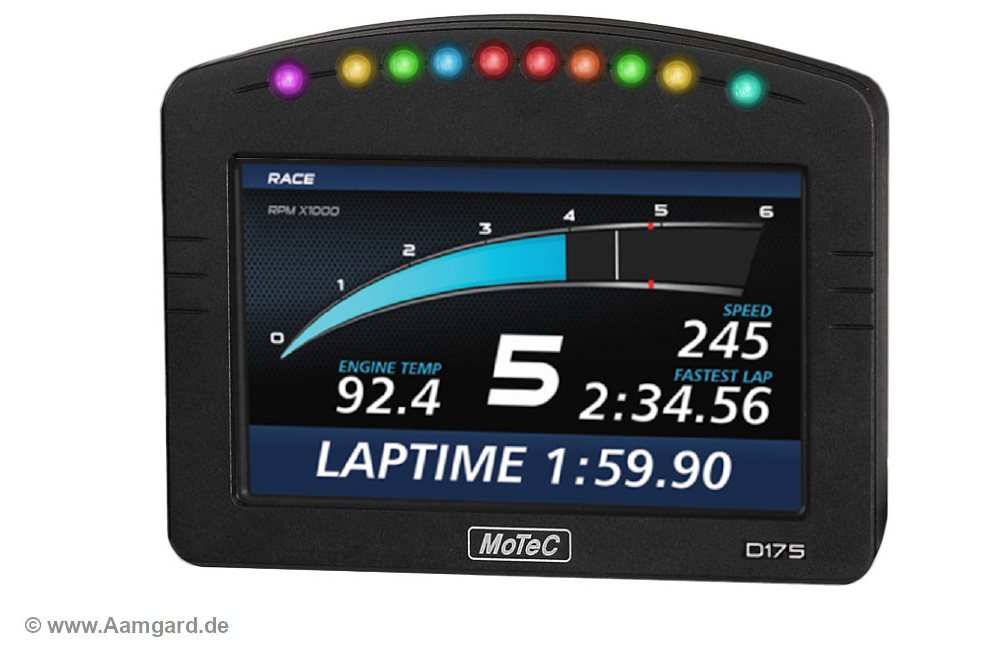

Motec Display 5" D175
The display D175 from Motec corresponds to the 5 inch dashlogger C185. The D175 contains no own logging capability. As the D153 it is mainly intended for mating an external data logger. Like the C18 series, layout, colour scheme and displayed information are widely user-configurable.
- high-resolution colour display 5" / 125mm
- 10 programmable RGB LEDs for warning signals, gear shift lights etc.
- 8 analog inputs
- CAN bus interface for data communication
- expandable with Motec data logger and instrumentation modules
- manufacturer: Motec

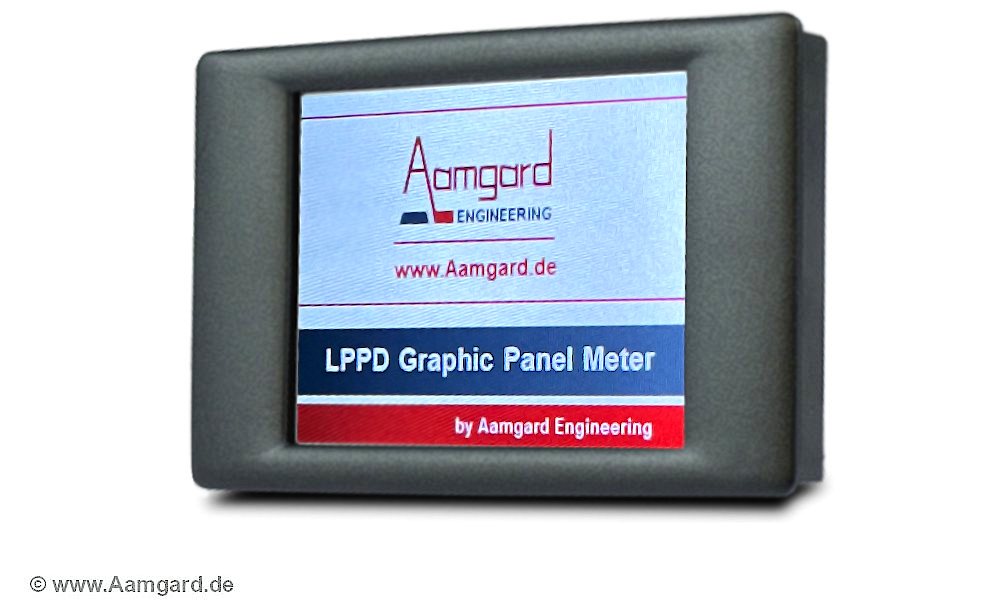

Graphical Panelmeter / Dashboard Display LPPD
The LPPD is a multi-function voltmeter with a high-resolution graphics display output. It is mainly intended for laboratories and test beds. The panelmeter can be configured via USB interface regarding layout and application functions. With its scalable oscilloscope and monitoring capabilities, curves of input voltages, pressures, temperatures etc. can be displayed over a user-specified period.
- TFT resolution: 320 x 240 pixel, screen diagonal 62mm
- supply voltage: 4..30VDC
- input voltage: 0..40VDC, capable of measuring own supply voltage
- accuracy: 0.05% typ. / 0.1% max.
- two user-definable alarm outputs
- layouts, colurs, input ranges etc. programmable via USB interface
- mounting dimensions(front panel): 76.5mm x 48.5mm
- manufacturer: Lascar Electronics

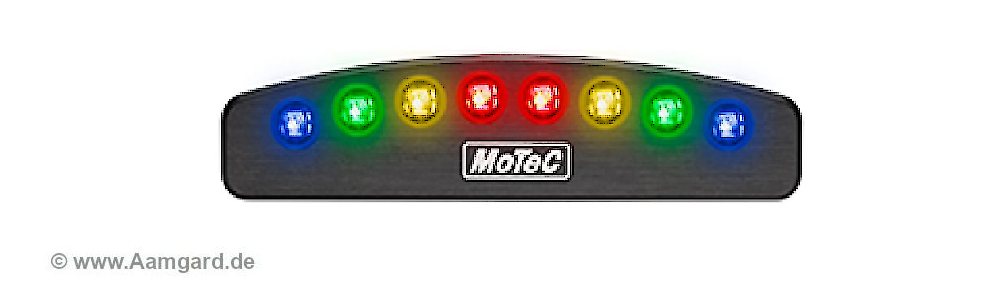

Sequential Shift Light Module SLM
CAN bus shift light and warning light with eight ultra-bright RGB LEDs. The SLM is used as a sequential shift light, a pit-limiter indicator or warning light for race track flag signals.
- LED colours, brightness and function schemes are user programmable.
- compatible with all Motec controllers, dash loggers and displays
- IP66, dimensions 81mm x 19mm, 16mm flat
- four-wire connection: battery +/- and CAN Lo/Hi
- manufacturer: Motec
